gridpack::component::BaseComponent Class Reference

#include <base_component.hpp>

Inheritance diagram for gridpack::component::BaseComponent:

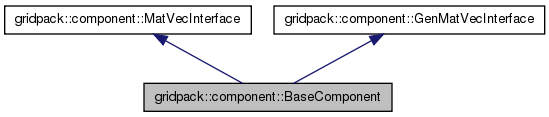

Collaboration diagram for gridpack::component::BaseComponent:

Public Member Functions
	BaseComponent (void)
virtual	~BaseComponent (void)
virtual void	load (const boost::shared_ptr< gridpack::component::DataCollection > &data)
virtual int	getXCBufSize (void)
virtual void	setXCBuf (void *buf)
virtual void	getXCBuf (void **bus)
virtual void	setMode (int mode)
virtual bool	serialWrite (char string, const int bufsize, const char signal=NULL)
virtual void	saveData (boost::shared_ptr< gridpack::component::DataCollection > data)
virtual bool	getDataItem (void data, const char signal=NULL)
void	setRank (int rank)
int	getRank (void) const

Constructor & Destructor Documentation

gridpack::component::BaseComponent::BaseComponent ( void )

Simple constructor

virtual gridpack::component::BaseComponent::~BaseComponent ( void ) [virtual]

Destructor

Member Function Documentation

virtual bool gridpack::component::BaseComponent::getDataItem	(	void *	data,
		const char *	signal = `NULL`
	)			`[virtual]`

Retrieve an opaque data item from component. Different items may be returned based on the value of signal.

Parameters:

	data	item to retrieve from component
	signal	string to control behavior of routine (e.g. what data item to return)

Returns:: true if component is returning data element, false otherwise

int gridpack::component::BaseComponent::getRank ( void ) const

Get rank holding the component

Returns:: processor rank holding the component

virtual void gridpack::component::BaseComponent::getXCBuf ( void ** bus ) [virtual]

Return the location of the data exchange buffer

Parameters:

buf

void pointer to exchange buffer

virtual int gridpack::component::BaseComponent::getXCBufSize ( void ) [virtual]

Return the size of the buffer needed for data exchanges. Note that this must be the same size for all bus and all branch objects (branch buffers do not need to be the same size as bus buffers), even if all objects do not require the same parameters. Thus, the buffer must be big enough to exchange all variables that an object might need, even if individual objects don't need all the variables

Returns:: size of buffer

Reimplemented in gridpack::powerflow::PFBus, and gridpack::state_estimation::SEBus.

virtual void gridpack::component::BaseComponent::load ( const boost::shared_ptr< gridpack::component::DataCollection > & data ) [virtual]

Load data from DataCollection object into corresponding component. This needs to be implemented by every component

Parameters:

data

data collection associated with component

Reimplemented in gridpack::ucCommitment::UCBus, gridpack::ucCommitment::UCBus, gridpack::unit_commitment::UCBus, gridpack::unit_commitment::UCBranch, gridpack::unit_commitment::UCBus, gridpack::unit_commitment::UCBranch, gridpack::ymatrix::YMBus, gridpack::ymatrix::YMBranch, gridpack::powerflow::PFBus, gridpack::powerflow::PFBranch, gridpack::state_estimation::SEBus, and gridpack::state_estimation::SEBranch.

virtual void gridpack::component::BaseComponent::saveData ( boost::shared_ptr< gridpack::component::DataCollection > data ) [virtual]

Save state variables inside the component to a DataCollection object. This can be used as a way of moving data in a way that is useful for creating output or for copying state data from one network to another.

Parameters:

data

data collection object into which new values are inserted

Reimplemented in gridpack::powerflow::PFBus, and gridpack::state_estimation::SEBus.

virtual bool gridpack::component::BaseComponent::serialWrite	(	char *	string,
		const int	bufsize,
		const char *	signal = `NULL`
	)			`[virtual]`

Copy a string for output into buffer. The behavior of this method can be altered by inputting different values for the signal string

Parameters:

	string	buffer containing string to be written to output
	bufsize	size of string buffer in bytes
	signal	string to control behavior of routine (e.g. what properties to write)

Returns:: true if component is writing a contribution, false otherwise

Reimplemented in gridpack::powerflow::PFBus, gridpack::powerflow::PFBranch, gridpack::state_estimation::SEBus, and gridpack::state_estimation::SEBranch.

virtual void gridpack::component::BaseComponent::setMode ( int mode ) [virtual]

Set an internal variable that can be used to control the behavior of the component. This function doesn't need to be implemented, but if needed, it can be used to change the behavior of the network in different phases of the calculation. For example, if a different matrix needs to be generated at different times, the mode of the calculation can changed to get different values from the MatVecInterface functions

Parameters:

mode

integer indicating which mode should be used

Reimplemented in gridpack::ymatrix::YMBus, gridpack::ymatrix::YMBranch, gridpack::powerflow::PFBus, gridpack::powerflow::PFBranch, gridpack::state_estimation::SEBus, and gridpack::state_estimation::SEBranch.

void gridpack::component::BaseComponent::setRank ( int rank )

Set rank holding the component

Parameters:

rank

processor rank holding the component

virtual void gridpack::component::BaseComponent::setXCBuf ( void * buf ) [virtual]

Assign the location of the data exchange buffer. These buffers are allocated and deallocated by the network

Parameters:
